PRODUCT

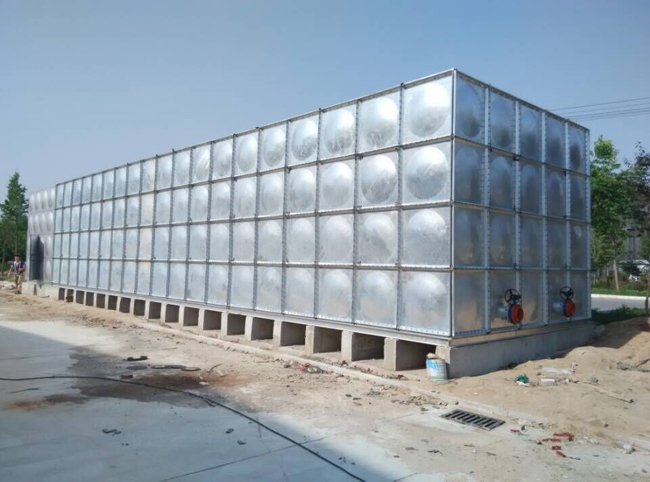

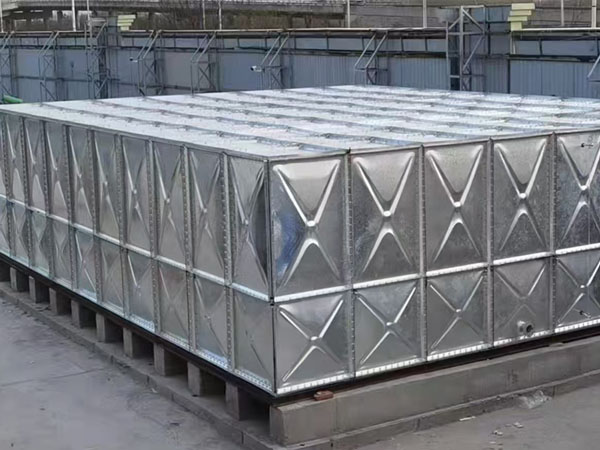

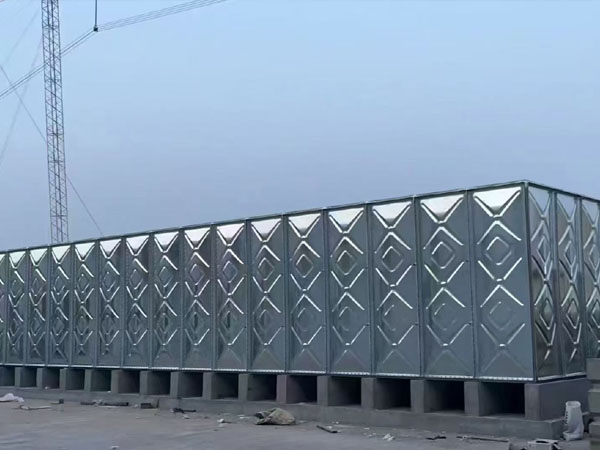

Galvanized & Enameled Steel Panel Water Tank

- Corrosion Protection: Prevents leakage, rust, and paint peeling, ensuring water quality.
- High Strength & Lightweight: Scientifically pressed panels provide excellent pressure resistance while reducing material use.
- Hygienic & Safe: Fully sealed design prevents algae growth and secondary contamination.
- Long Service Life: Resistant to deformation, mildew, and pollution, ensuring durability.
- Easy Assembly & Aesthetic Design: Modular construction for quick installation and relocation, with a clean and modern appearance.
- Cost-Effective: Offers a more economical solution compared to traditional concrete tanks.

Galvanized and enameled steel panel water tanks share the same modular structure, material selection, and assembly process. Their main difference lies in the anti-corrosion treatment:

Galvanized Steel Tank: Manufactured from premium galvanized steel panels to ensure durability and excellent corrosion resistance.
Enameled Steel Tank: Uses HSC-series mineral-based enamel applied to carbon steel plates, sintered at 1300°C for superior corrosion protection.

Both tank types are assembled from modular panels supported by channel steel bases and reinforced with internal stainless steel tie rods. Rubber seals and stainless bolts ensure excellent strength and watertight performance. Capacities range from 1 m³ to 1000 m³ and can be custom-designed based on project requirements. Inlet, outlet, and overflow pipe diameters and locations are configurable to match your design.

Installation Requirements:

A clearance of at least 600 mm must be maintained around the tank, with a minimum of 800 mm at the top and bottom for maintenance access. All panel seams at the base must be aligned with the support frame for proper load distribution.
