Stainless steel water tank

Stainless steel water tank

Our stainless steel water tanks are made from high-quality SUS304, SUS444, and SUS316L food-grade stainless steel, fully compliant with national hygiene standards. They are ideal for storing cold water, hot water, and various solvents, offering superior durability and safety.

  • Premium Materials: Manufactured with SUS304/SUS444/SUS316L food-grade stainless steel.

  • Corrosion & Crack Resistance: Excellent durability, outperforming plastic and FRP tanks.

  • Versatile Applications: Suitable for cold water, hot water, and solvent storage.

  • Full Replacement: A superior alternative to cement, iron, and other conventional water tanks.


Description

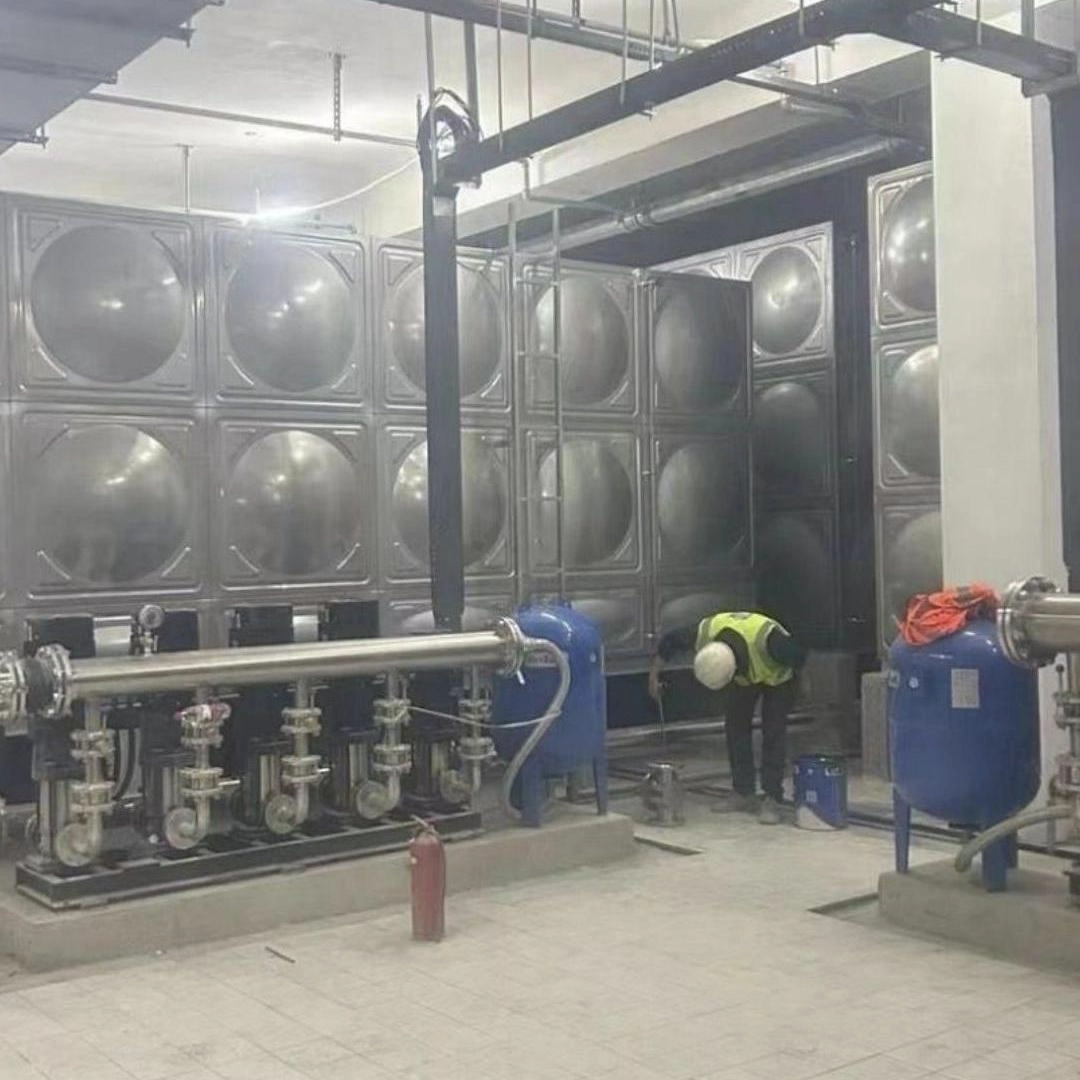

Our stainless steel water tanks combine aesthetic appeal with advanced engineering. Their clean, streamlined design enhances cityscapes and reflects modern architecture, while the three-dimensional internal reinforcement ensures outstanding strength and stability. The excellent sealing performance prevents secondary water pollution, guaranteeing safe, clean water storage.

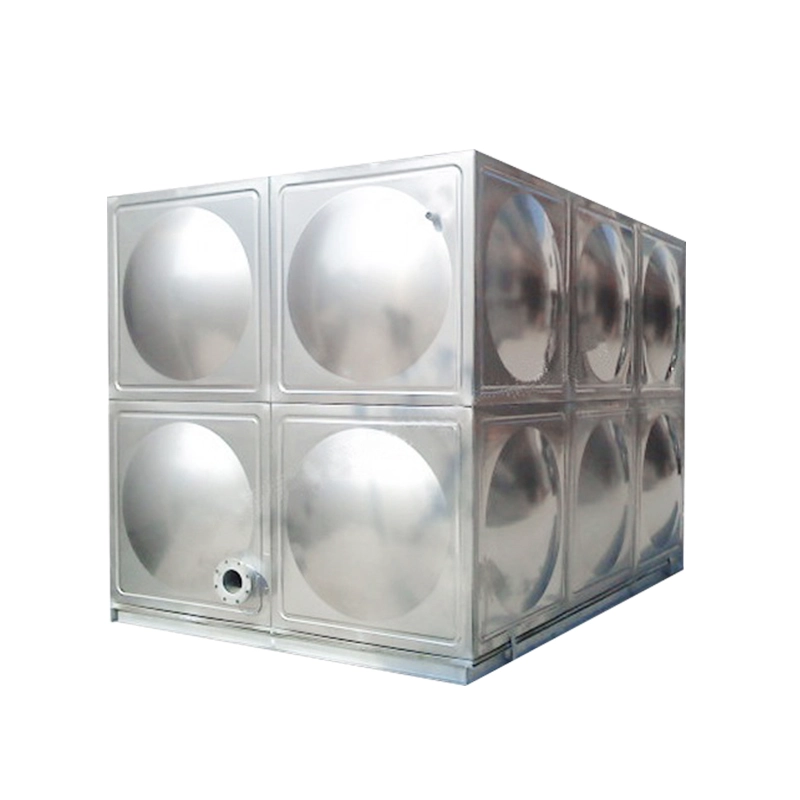

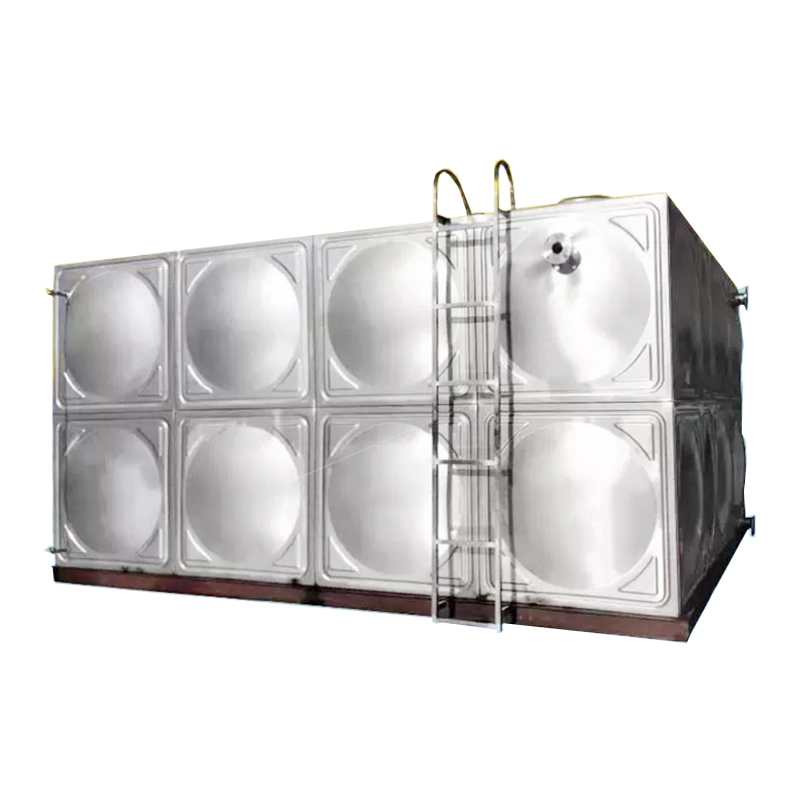

The tanks are built from modular pressed panels (1000×1000 mm, 1000×500 mm, 500×500 mm) that can be flexibly combined to match your space requirements. On-site assembly and welding eliminate the need for heavy lifting equipment, and all accessories — including manholes, ladders, inlet/outlet ports, internal supports, and steel bases — can be integrated into the design.

Each tank is manufactured with precision, using high-quality stainless steel and roll-formed strengthening ribs that significantly increase panel strength and durability. Once installed and filled, the tank resists deformation, leaking, rust, and corrosion, ensuring a long service life. The smooth, seamless interior design prevents sediment buildup, making cleaning simple — just open the bottom drain valve to flush out deposits.

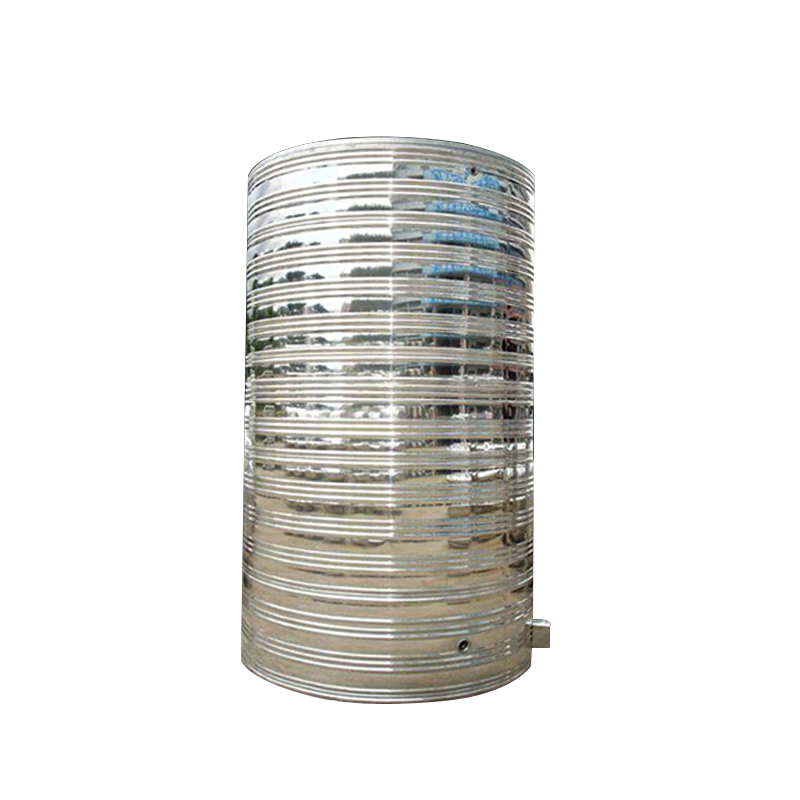

Compact and lightweight yet high-capacity, these tanks are ideal for installations where space is limited. Vertical or horizontal configurations are available, with flat or bracket-supported bases. The tanks feature special air valves that automatically close when full, keeping water sealed, hygienic, and free from secondary contamination. Manufactured with advanced mold-free forming technology, they offer high pressure resistance, low wind and snow load, and can even serve a decorative purpose or integrate with advertising elements.



Model Capacity (m³) Length (L) mm Width (B) mm Height (H) mm Bottom Plate Top Plate Side 1 Side 2 Side 3 Side 4 Edge Distance (C) Interval (C1) Qty (n)
HHWT-1 1 1000 1000 1000 1.0 1.0 1.0 200 600 2
HHWT-2 6 2000 2000 1500 1.5 1.0 1.2 1.2 200 540 4
HHWT-3 10 2500 2000 2000 1.5 1.0 1.2 1.5 200 530 5
HHWT-4 15 3000 2500 2000 1.5 1.0 1.2 1.5 300 600 5
HHWT-5 20 4000 2500 2000 2.0 1.0 1.2 1.5 150 530 8
HHWT-6 24 4000 3000 2000 2.0 1.0 1.2 1.5 260 580 7
HHWT-7 30 5000 3000 2000 2.0 1.0 1.2 1.5 260 640 8
HHWT-8 40 5000 4000 2000 3.0 1.2 1.2 1.5 260 640 8
HHWT-9 50 5000 5000 2000 3.0 1.2 1.2 1.5 200 640 8
HHWT-10 100 10000 5000 2000 3.0 1.2 1.5 2.0 200 640 16
HHWT-11 500 25000 5000 4000 3.0 1.2 1.2 1.5 2.0 2.0 200 615 41
HHWT-12 1000 25000 10000 4000 3.0 1.2 1.2 1.5 2.0 2.0 200 615 41
